PIPE PLUG IMMERSION HEATERS

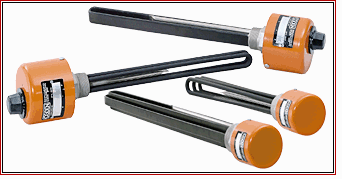

Ogden Pipe Plug Immersion Heaters

Tubular heaters or Mighty-Blade elements are brazed or welded in a brass, steel or stainless steel pipe plug. Ratings from 350 watts to 38kw and numerous variations and options are available. Pipe plug immersion heaters are generally used in small to medium size containers at pressures up to 3000 psi and are screwed directly through a threaded opening in the tank wall.



Click here for ordering information!
1", 1-1/4", 2" and 2-1/2" NPT pipe plug in brass, steel or stainless steel
.312" diameter tubular element(s) on 1" and 1-1/4"; .475" diameter elements on 2" and 2-1/2" or .275" x 1" Mighty-Blade element(s)
Copper, steel, stainless steel, or Incoloy sheath material. Mighty-Blade sheath material is Incoloy
High, medium and low watt densities for various processes
General purpose or explosion and moisture resistant terminal enclosures
Tubular element ends are repressed after forming to extend element life
Element supports on larger size units maintain element spacing
Single and double pole thermostats in several temperature ranges
Many items are available from stock. Request a Stock List for most current information
Instruction Manual with wiring diagrams are included with each unit
Applications:
Copper Sheath:  Clean Water, freeze protection, hot water storage, boiler and water heaters, cooling towers, heating of solutions not corrosive to copper
Stainless Steel Sheath:  Process water, soap and detergent solutions, soluble cutting oils, demineralized or deionized water (passivation recommended)
Incoloy Sheath: Solution water, corrosive solutions, steam super heating, air or gas
Steel Sheath: Asphalt, wax, paraffin, tar, fluid heat transfer medium, petroleum, degreasing and solvent oils, machine oil, fuel oils, alcohol
Be certain that the sheath material and watt density selected are compatible with the material being heated and the operating temperature.

Options: Ordering Information:
Special ratings, immersion length, or thread size
316 stainless steel or other sheath material
Other material for pipe plug
Passivation
Electropolishing
High temperature cut-out
Thermocouple attached to sheath for high-limit protection
Catalog Number
If ordered with thermostat, specify temperature range
Other options
If catalog number is not available, provide a complete description, sketch or drawing or contact iProcesSmart Technical.
