Model LS2000 Level Switch |
 |
Product
Description Calibration Construction Specifications Ordering Information |
|
|
|
| Description | |

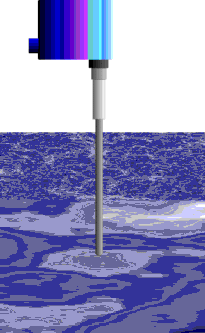

| The
LS2000 is a low-cost level switch that can measure virtually any
liquid, dry material or interface of electrically conductive or
non-conductive products. The proprietary radio
frequency (RF) balanced impedence bridge has exceptional temperature
stability, thus eliminating the need to recalibrate the unit from
season to season. When the probe is installed, it is calibrated in absence of material touching the probe. When the desired material comes in contact with the probe, the LS2000 is activated and gives the desired output. |
|
| Calibration | |
| All
the necessary calibration indicators are on-board so all you need
to calibrate the LS2000 is a small screwdriver. Fail-safe electronics provide peace of mind. The modular electronics make trouble shooting and repair a snap. The entire unit is backed by our two year warranty. |
|
| Construction | |
| The probe is made of solid 316 stainless steel rod, the insulator is made of UHMWPE (Ultra-High Molecular Weight Polyethylene). UHMWPE has excellent abrasion and impact resistance. The seals are made with Viton "O" rings. All the electronics are housed in a cast aluminum explosion-proof enclosure. | |
| Specifications | |
View printable PDF file| Power: | 120VAC (+/- 15%) 60Hz, 2 watts, standard. 24VDC Optional. |
| Output: | 1 Form C contact SPDT relay, 10Amp resistive at 125VAC, 8A @ 250VAC, 5A @ 30VDC. |
| Fail Safe: | Selectable high or low level. |
| RF Frequency: | Approximately 1.3 MHz. |
| Hazardous Area: | Class I, Group C, D. Class II, Group E,F,G. Class III. |
| Temperature: | Probe:
-30 deg F to 180 deg F Electronics: -30 deg F to 170 deg F. |
| Pressure: | 250 psi @ 180 deg F. Note that at 180 deg F, the pressure should not exceed atmosphere. |
| Construction: | Probe:
All wetted parts 316SS, UHMWPE and Viton. Electronics: Housed in cast aluminum explosion-proof enclosure. |
| Specifications are subject to change without notice. |
Ordering
Information
 |
|
 |
Standard items are delivered from stock, special orders may take longer. |

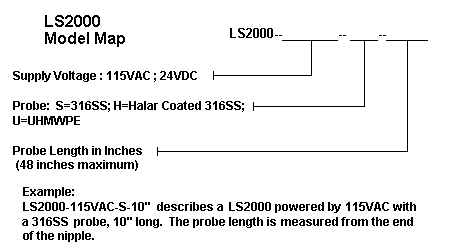

| ORDERING CHART | ||
| P/N | Description |
Order
Now!
|
| BA LS2000-115VAC-S-10 | Babbitt LS2000-115VAC-S-10 Level Switch |
 |
| BA LS2000-115VAC-H-10 | Babbitt LS2000-115VAC-H-10 Level Switch |
|
| BA LS2000-115VAC-U-4 | Babbitt LS2000-115VAC-U-4 Blind End Probe Level Switch |
|
| BA LS2000-24VDC-H-10 | Babbitt LS2000-24VDC-H-10 Level Switch |
|
| BA LS2000-24VDC-S-10 | Babbitt LS2000-24VDC-S-10 Level Switch |
|
| BA LS2000-24VDC-U-4 | Babbitt LS2000-24VDC-U-4 Level Switch |
|
| BA LS2000-E-115VAC | Babbitt LS2000-E-115VAC Electronics for 115VAC |
|
| BA LS2000-E-24VDC | BAbbitt LS 2000-E-24VDC Electronics |
|
| BA LS2000-HOUSING | Babbitt LS2000-HOUSING |
|
| BA LS2000-H-PROBE-10 | Babbitt LS2000-H-PROBE ASSEMBLY 10" |
|
| BA LS2000-S-PROBE-10 | Babbitt LS 2000-S-PROBE ASSEMBLY 10" |
|
| BA LS2000-U-PROBE-4 | Babbitt LS 2000-U-PROBE ASSEMBLY 4" |
|
| EXTENDED PROBES | *Special Lengths require longer delivery. | ||
| 1/2" Dia. x 48"Max. | 316SS | ||
|
|
Halar Coated | ||
|
(Standard lengths available: 10", 18" & 24") |
|||
| OPTIONS | |||
|
LS2000TINSUL |
Teflon Insulator (replaces UHMWPE) |
|
|
| SPARE PARTS | |||
| LS2000ELEC115AC | Electronics Module LS2000, 115VAC | ||
| LS2000ELEC24DC | Electronics Module LS2000, 24VDC | ||
| LS2000SPROBE10 | Probe Assembly 10" 316SS | ||
| LS2000HPROBE10 | Probe Assembly LS2000, 10" Halar Coated | ||
| LS2000UPROBE4 | Probe Assembly LS2000, 4" UHMWPE Blind End | ||
| LS2000HOUSING | Housing LS2000, CL1, Gp C, D, CL II, Gp E, F, G, CL III | ||
APPLICATION NOTES:
 |
LS2000 has limited static protection, and is not recommended for plastic pellets or resins with static charges. |
|
LS2000 cannot handle as much material build-up on the probe as the LS6000 or LS7000. |
|
Factory modifies the electronics for probes over 24" in length. If you plan to extend the probe in the field, please let us know. (48" is the maximum length for the LS2000) |
