Big Blue Filter Systems


Models BBFS-22 and BBFS-222 Big Blue Filter Systems
BBFS-22*				BBFS-222*

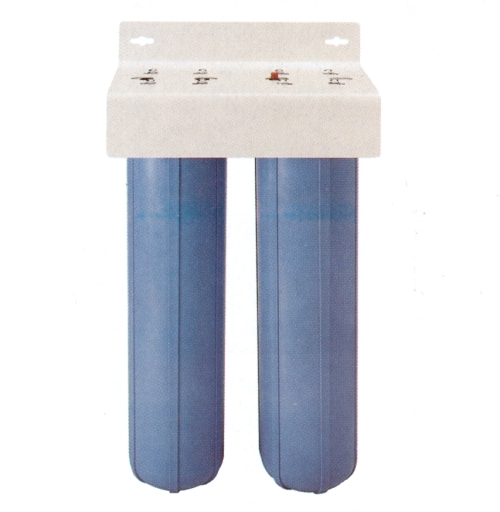

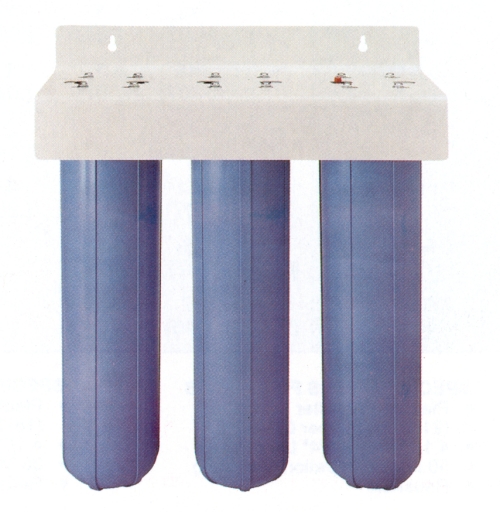

Two-20" Big Blue Housings of Reinforced FDA Grade Polypropylene on Unit Mounting Bracket. Overall Dimension: 15 1/4" W x 8 1/2" D x 26 1/2" H				Three-20" Big Blue Housings of Reinforced FDA Grade Polypropylene on Unit Mounting Bracket (Additional housing for added dimension and filter capacity.) Overall Dimension: 23 1/4" W x 8 1/2" D x 26 1/2" H
* Does Not Include Filter Cartridge, Please Refer to chart for Filter Information.

The BBFS-22 filtration system contains two large-capacity 20" Big Blue filter housings, which are mounted in series. The BBFS-222 system contains three large-capacity 20" Big Blue filter housings mounted in series. Both systems are offered with high flow 1" connections. These high flow series systems offer a wide variety of filtration capabilities, depending upon your filter cartridge choice.

The large body size allows for greater cartridge capacities and higher flow rates than are possible with standard size systems. Flow rates range up to 40 GPM, with pressure drops as low as 1 psi. The all-polypropylene construction offers excellent compatibility with water, beverages, syrups, and a broad range of chemicals.

Both systems provide heavy-duty filtration, with the BBFS-222 having up to 50% greater capacity. A pressure relief button is included on systems to facilitate cartridge change.

NOTE: 20" sumps are interchangeable with 10" sumps.

Standard Housings
Valve-in-head Housings
Filter Housings
Clear Housings
Slim Line Housings
Hot/High Pressure Housings
Big Blue Housings
Slim Line Black Housings
Accessories
Countertop Filters
Disposable Filters
Refillable/Reusable Filters
Sediment Cartridges
Big Blue Cartridges
Deionizing Cartridges
Countertop Filter Units
Chemical Containment Systems
Big Blue Filter Systems

Whenever you see me you will find a PDF file. Click here to download the latest Adobe Acrobat Reader

Applications

HOME:

Wholehouse Filtration to Reduce:

Rust
Iron (Dissolved and Particulate)
Sediment (sand, silt, scale, sludge, and rust particles)
Taste/Odor
Chlorine

COMMERCIAL:

Deionizing
Coalescing
Combination
Sediment/Rust
Taste/Odor
Duplexing

INDUSTRIAL:

Step-Down Filtration
Circulating Baths
Plating
Batch Treatments
Color Removal
Organic Reduction
Cooling Towers
Pre R.O. Filtration
Duplexing

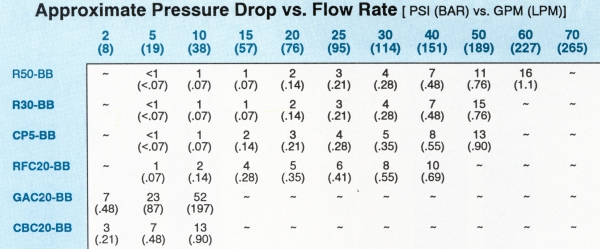

Filter Cartridge Information Chart - Click to enlarge

SPECIFICATIONS FOR R50-BB

Pleated Polyester (2160 sq.in.) per Cartridge
4 1/2" OD, 9 3/4" Long, 1" ID
50 Micron Filtration (Nominal)
Reusable

SPECIFICATIONS FOR R30-BB

Pleated Polyester (1872 sq.in.) per Cartridge
4 1/2" OD, 9 3/4" Long, 1" ID
30 Micron Filtration (Nominal)
Reusable

SPECIFICATIONS FOR CP5-BB

Pleated Cellulose Polyester (2160 sq.in.) per Cartridge
4 1/2" OD, 9 3/4" Long, 1" ID
5 Micron Filtration (Nominal)

SPECIFICATIONS FOR RFC-BB AND RFC20-BB

Radial Flow, Carbon Cartridge
4 1/2" OD, 9 3/4" Long, 1" ID
70 Micron (Nominal) Polyethylene Outer Shell; 25 Micron (Nominal) Final
113 cu.in. (9 3/4") or 228 cu.in. (20") of Granular Activated Carbon

SPECIFICATIONS FOR GAC-BB AND GAC20-BB

4 1/2" OD, 9 3/4" or 20" Long
134 cu.in. (9 3/4") or 297 cu.in. (20") of Granular Activated Carbon

SPECIFICATIONS FOR CBC20-BB

Granular Activated Carbon
4 1/2" OD, 9 3/4" Long, 1" ID
0.5 Micron Filtration (Nominal)
42 oz. of Powdered Activated Carbon

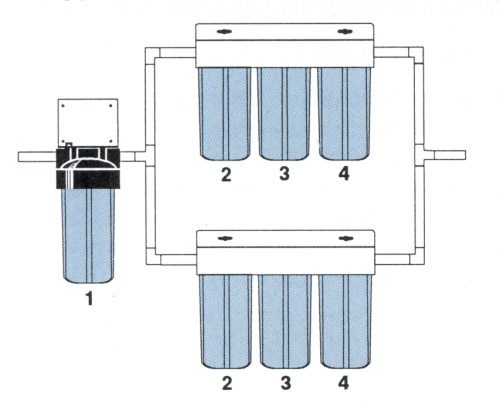

Typical Installation of Parallel System for High Flow and/or High Capacity - Click to enlarge

High Flow

R30-BB Prefilter (two)*
RFC20-BB Carbon
RFC20BB Carbon
CP5-BB Final Filter (two)*

Capacity up to 25 GPM @ 16 GPM approx. 160,000 gal. Life

High Capacity

R30-BB Prefilter (two)*
GAC20-BB Carbon
GAC20-BB Carbon
CP5-BB Final Filter (two)*

Capacity up to 10 GPM @ 8 GPM approx. 500,000 gal. Life

* Coupling for 9 3/4" cartridges required.
** Estimated life for chlorine reduction

WARNING: For drinking water applications, do not use where the water is microbiologically unsafe or with water of unknown quality without adequate disinfection before or after the unit.

CAUTION: The filter must be protected from freezing. Failure to do so may result in cracking of the filter and water leakage.

NOTE: The activated carbon cartridges contain a very small amount of carbon fines (very fine black powder) and a new cartridge after installation should be flushed with sufficient water to remove all traces of fines from your water system before using the water. Each time you use the water from your filtered water tap for drinking or cooking purposes, it is recommended that you run (flush) the tap for at least 10 seconds prior to using the water. This is particularly important if the water tap has not been used daily.
